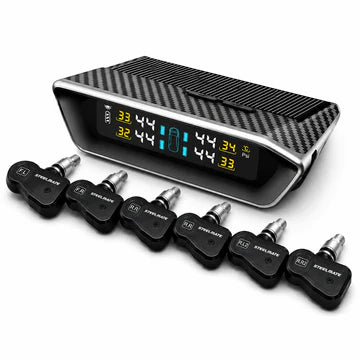

Steelmate Internal TP-V3 I / 6 Wheel Internal TPMS for 4-Wheel Vehicle/+Trailer

Steelmate TP-V3 I / 6 Wheel Internal TPMS for 4-Wheel Vehicle/+Trailer

Box includes the following:

6 x Internal sensors

1 x display

Key Features

• Fit for 4~12 wheels, for 4-wheel vehicle + trailer or Light Truck

Specifications:

Sensor:

• Operating frequency:                       433.92MHz ± 0.05MHz
• Operating Voltage:                            2.0~3.3V
• Operating Current:                            ≤12mA
• Static current:                                   ≤0.5μA
• Operating temperature:                   -20°C~+80°C
• Storage temperature:                      -40°C~+80°C
• Battery Specification:                       CR1632
• Battery Lifetime:                               ≥2 years
• Weight:                                              8.9g ± 0.5g

Alarm Values

• Alarm Value:
  Adjustable High pressure value:      2.6~7.9Bar

  Adjustable Low pressure value:        0.9~3.9Bar

  Adjustable High temperature value:    70~90°C

Default value:

High pressure value:   3.3Bar
Low Pressure value:   1.7Bar
High temperature value:   80°C

Note: The alarm pressure value suggest to be±25% of recommended tire pressure
