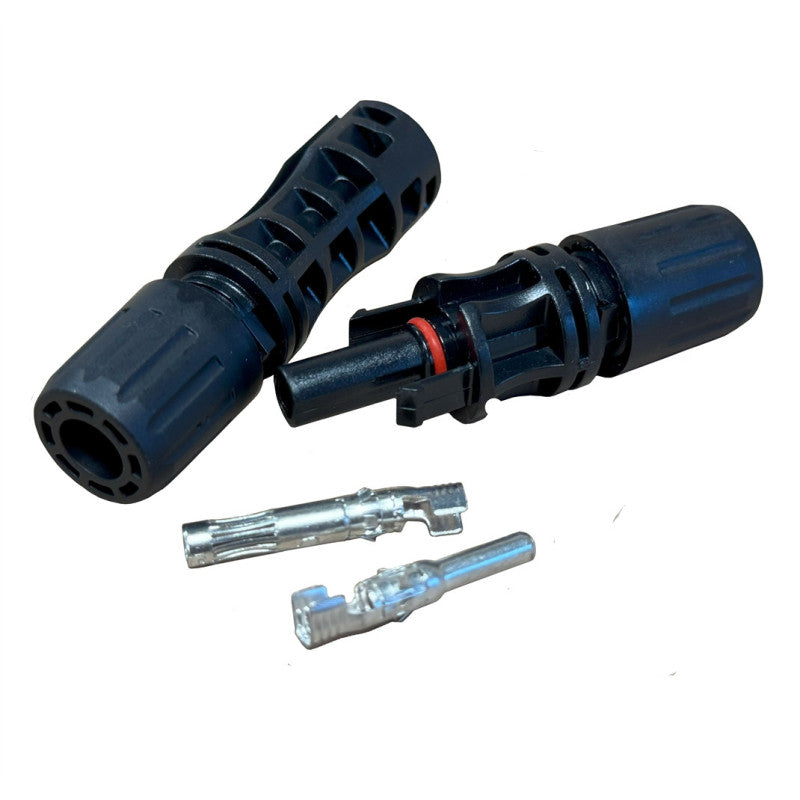

MC4 Evo 2 Solar Connector set

Description MC4 Evo 2 Solar Connector set Connector system: Ø 4 mm. Rated voltage: 1500 VDC. Rated current TÜV (85°C): 45 A (4,0 mm²/12 AWG), 53 A (6,0 mm²/10 AWG). Rated impulse voltage: 16 kV (1500 V). Ambient temperature range: -40°C ... +85°C (TÜV/UL). Upper limiting temperature: 115°C (TÜV). Degree of protection: IP65 Overvoltage category/Pollution degree: CAT III/3. Contact resistance of plug connectors: ≤0.2 mΩ. Safety class: II. Contact system: MULTILAM. Type of termination: Crimping. Contact material: Copper, tin plated. Insulation material: PA. Locking system (UL): Locking type. Main differences between MC4 and MC4 Evo: Voltage: The MC4-Evo 2 has a higher rated voltage of 1500 V DC, compared to the MC4's 1000 V DC. This makes the MC4-Evo 2 suitable for larger, higher-voltage commercial solar installations. Current: The MC4-Evo 2 can handle a higher maximum current, especially with larger cable sizes. For example, with a 10mm² cable, the MC4-Evo 2 is rated for up to 69A, whereas the MC4 is rated for up to 45A (or 104A in some specific models). Surge Voltage: The MC4-Evo 2 has a higher rated surge voltage of 16 kV, compared to the MC4's 12 kV.
